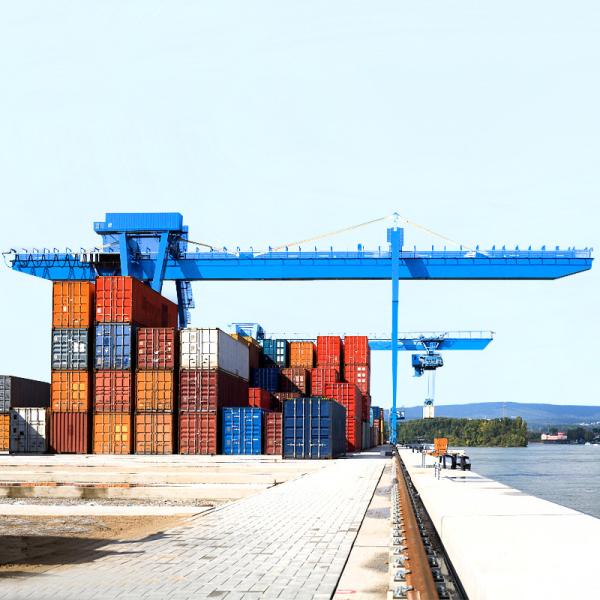

RMG Model Mobile Harbour Double Girder Cargo Container Crane
Cargo Container Crane Description:
Rail Mounted Double Girder Container Gantry Crane (RMG) is suitable for loading and unloading of large span, frequently railway freight yard, port, open storage, container transfer station etc.. This machine adopts U type gantry, its legs headroom large (nearly 7 meters). It is suitable for heavy bulky cargo and container handling operations, with frequent high-level work, A5 ~ A8. The weight of 5 to 500 tons, the span of 18 to 35 meters, the girder can be designed have cantilever and no cantilever, the end of two main beam connected with end beams to meet the high level requirements.
Cargo Container Crane Parameter
| Rail mounted gantry crane technical specifications | | |
| Capacity | | t | 35 | 40.5 |
| Span | | m | 30 | 22 |
| Lifting Height | | m | 16 | 12.3 |
| Work Duty | | m | A6 | A7 |
| Type of Container | | | 20' 40' 45' |
| Speed | Hoisting | m/min | 0~10 | 10/18 |
| Crab Travelling | 3.4~34 | 40 |
| Trolley Travelling | 2.9~29 | 45 |
| Rotation | r/min | - | 1.35 |
| Rail | | | P43 | QU70 |
| Power | 3-Phase A.C. 380V 50Hz |
Cargo Container Crane Drawing
Safety Device
- Gearmotor locker rope to protect drop
- Rain cover for outside hoist, driving units, electrical cubicle
- Wind limitor:Wind detector device has been installed for all outdoor gantry cranes
- Rail rocker
- Rail sweeper
- Warning indicator: flashing lights and warning sound
- Wireless infra-detector for anti-collusion
Cargo Container Crane Details Show:
- Crane power supply system
- Trolley power supply system
- Main girder
- Trolley assembly
- Ton board
- Electrical box
- Rail clamping device
- Anchor
Certifications
Package and Delivery
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.
2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation.
3. If the size are suitable for container ship, usually by container.
4. Big size, usually by bulk ship or by container after truncation.
5. Transport ways are based on reducing cost & keep safety.
Delivery
1. If the size of whole crane are suitable for container ship, usually by container;
2. If the size is too big, usually by bulk ship or by container after truncation;
3. Transport ways are based on reducing cost for you and keep the crane performance!
